TORO-systems TR - Dry Air
dryer for hygroscopic granular plastic material with a modular design
TORO-systems TR - Dry Air
2 bed dryer with a dew point of as low as -60°C
- 2 Cartridge dryer for a constant flow of dry air
(from 120 m³/h with separate regeneration motor)
- regeneration is automatically adjusted according to the throughput
AES-System (automatic energy saving system))
- monitoring of all functions
- integrated hopper loader (option)
- 2nd drying temperature to prevent over drying (option)
- Automatic monitoring of filters (optional)
- optional: regeneration depending on dew point
- size of material pin: 30, 50, 75, 100, 150, 200, 300 and 400 liter
- optional: return air-cooler to reduce dew point
- material bin and heating elements optimal insulated (up to 40 mm Rock wool)
- inspection glass
- under Carriage with suction nozzles
- separate heating controller (industrial quality)

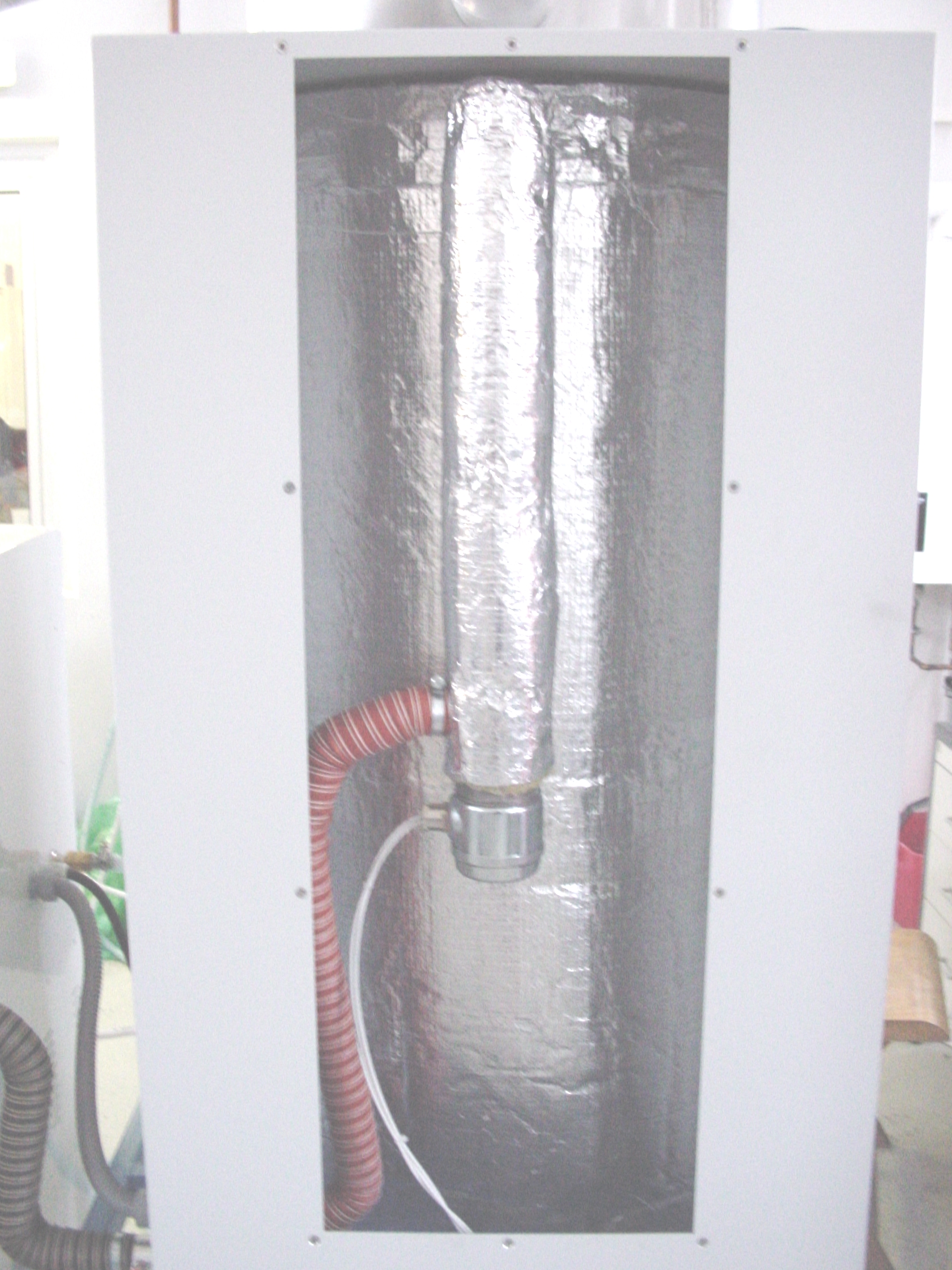

- process- and regeneration heating element at the material bin (control unit without thermal stress)
- easy handling
TORO-systems Dry-Wheel Zubehör
Lufteinheit mit bis zu 60 m³/h Trockenluft- Lufteinheit kann mit einem oder mehreren Behältern kombiniert werdenBehältergrößen: 30, 50, 75, 100, 150 und 200 L(maximales Volumen der Materialbehälter 200 Liter,z.B. 1 * 200 L oder 2 * 100 L oder 3 * 50 L usw.)- integrierte Materialfördergeräte (optional)Diese Lufteinheit ist nur noch begrenzt lieferbar.Bitte senden Sie uns eine e-mail mit der gewünschten Konfiguration und wir erstellen Ihnen ein Angebot.Das Nachfolgemodell ist: TORO-systems Dry Wheel
Dry Air unit with up to 120 m³/h dry air- Air unit can be combined with one or more containersContainer sizes: 30, 50, 75, 100, 150, 200, 300 und 400 l(maximum volume of material containers 400 Liter,for example 1 * 400 l or 2 * 200 l or 3 * 100 l, ... )- integrated material conveyors (optional)- Integrated dew point meter (optional)- Return air cooler (optional)- Phase monitoring (optional)- Filter monitoring (optional)For a non-binding offer you can also send us an email with your requirements.
Dry Air unit with up to 200 m³/h dry air- Air unit can be combined with one or more containersContainer sizes: 30, 50, 75, 100, 150, 200, 300 and 400 l(maximum volume of material containers 400 Liter,for example 1 * 400 l or 2 * 200 l or 3 * 100 l, ... )- integrated material conveyors (optional)- Integrated dew point meter (optional)- Return air cooler (optional)- Phase monitoring (optional)- Filter monitoring (optional)For a non-binding offer you can also send us an email with your requirements.
